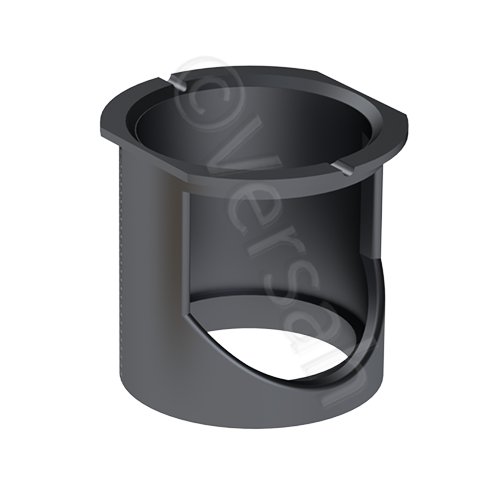

NEW notch for better hex alignment. Added ring for key stability and key design for easy installation and alignment. Used with the Densah® Burs G3 and Large G-Stop® Gauge/Keys for guided surgery with the Densah Burs.

The specifically designed "C" shape helps with irrigation flow and allows better luxating motion with the Densah.

Features:

• Compatible with Large G-Stop® Keys
• Used for Implant Diameters up to 5.3 mm
• C-Guide Outside Diameter: 7.1 mm
• C-Guide Inside Diameter: 6.20 mm
• C-Guide Height: 7.25 mm

Requirements:

• Large G-Stop Gauge/Keys
• Generation 3 (G3) Densah Bur
• Compatible with Tapered Pilot Drill, VT1525, VT1525-S, VT1828, VT1828-S, VS2228, VT2535, VT2535-S, VT2838, VT2838-S, VS3238, VT3545, VT3545-S, VT3848, VT3848-S, VS4248
